Water filled Barrier

The Water-Filled Barrier delivers portable, on-site adjustable ballast for traffic control and perimeter protection in durable plastic. Available for purchase, ideal for road and civil works and event traffic management.

Durable plastic construction, fillable with water for adjustable, on-site ballast
Large threaded fill port speeds up loading
Dual bottom drain plugs support relocation between work zones.
Molded-in light pockets accept standard blinking lights for night visibility.

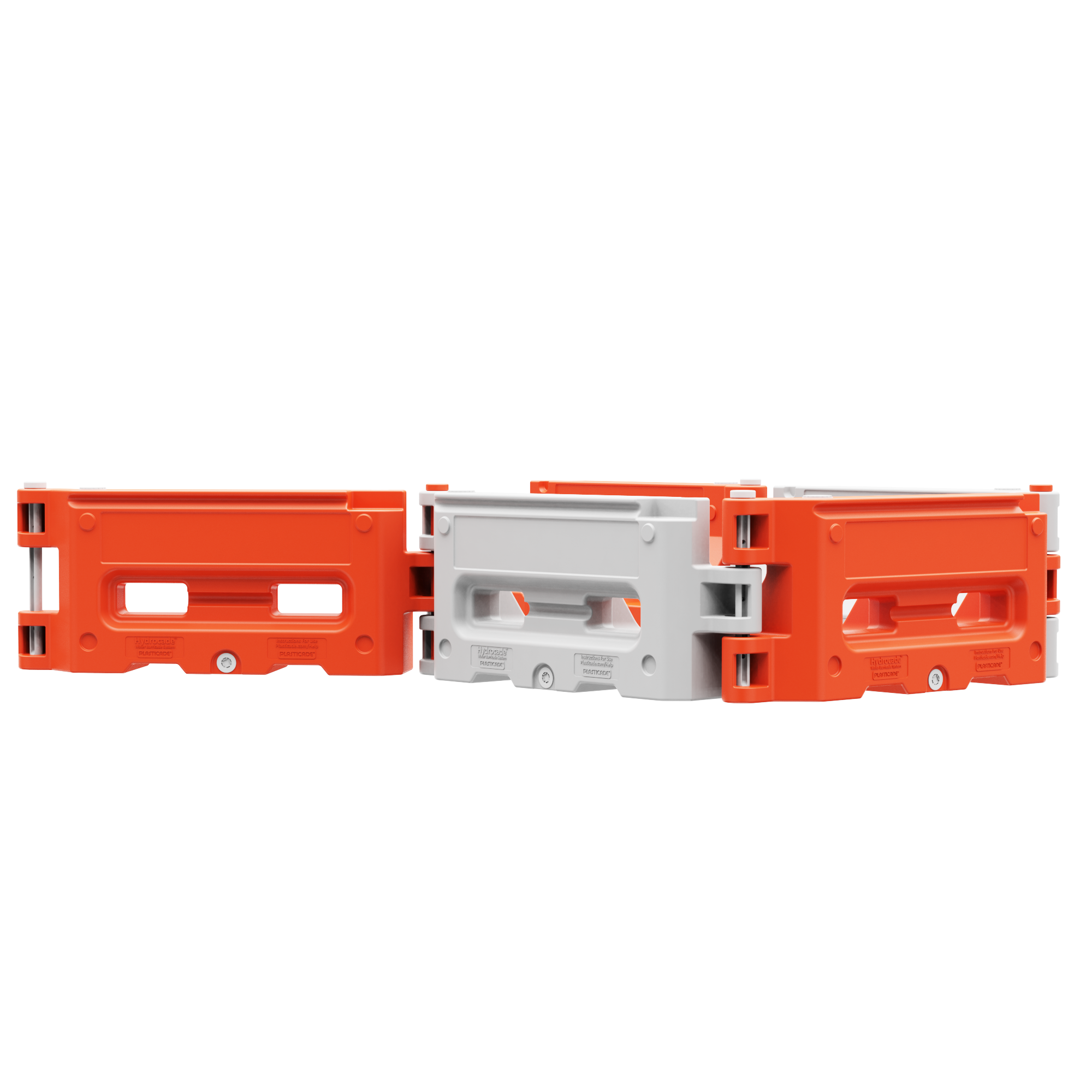

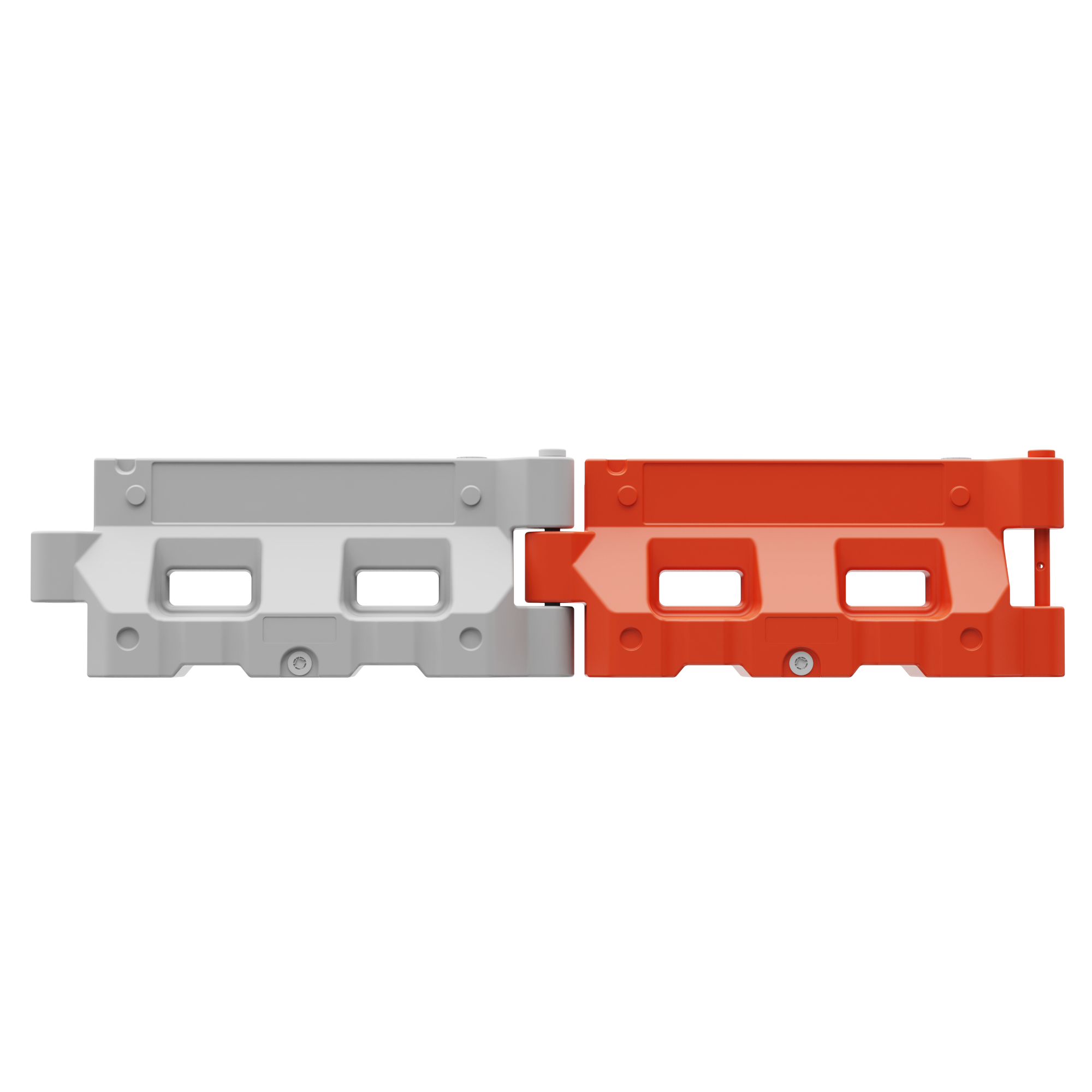

Links into continuous runs for lane closures, detours, and access control.
High-visibility profile supports clear vehicle and pedestrian separation.
Direct-buy supply keeps traffic management equipment available.
72 in. L x 32 in. H, about 67 lbs empty and 745 lbs when filled with 81 gallons of water.
Crash tested to TL-3 MASH acceptance, submitted to the FHWA, and meets MUTCD standards.
Conforms to the roadway, turning 90 degrees and adjusting to curbs up to a 6 degree incline.
Unique stacking design ships up to 200 units per truckload, with two forklift access points.
No heavy machinery needed to install, and made in the U.S.A.

Product Description

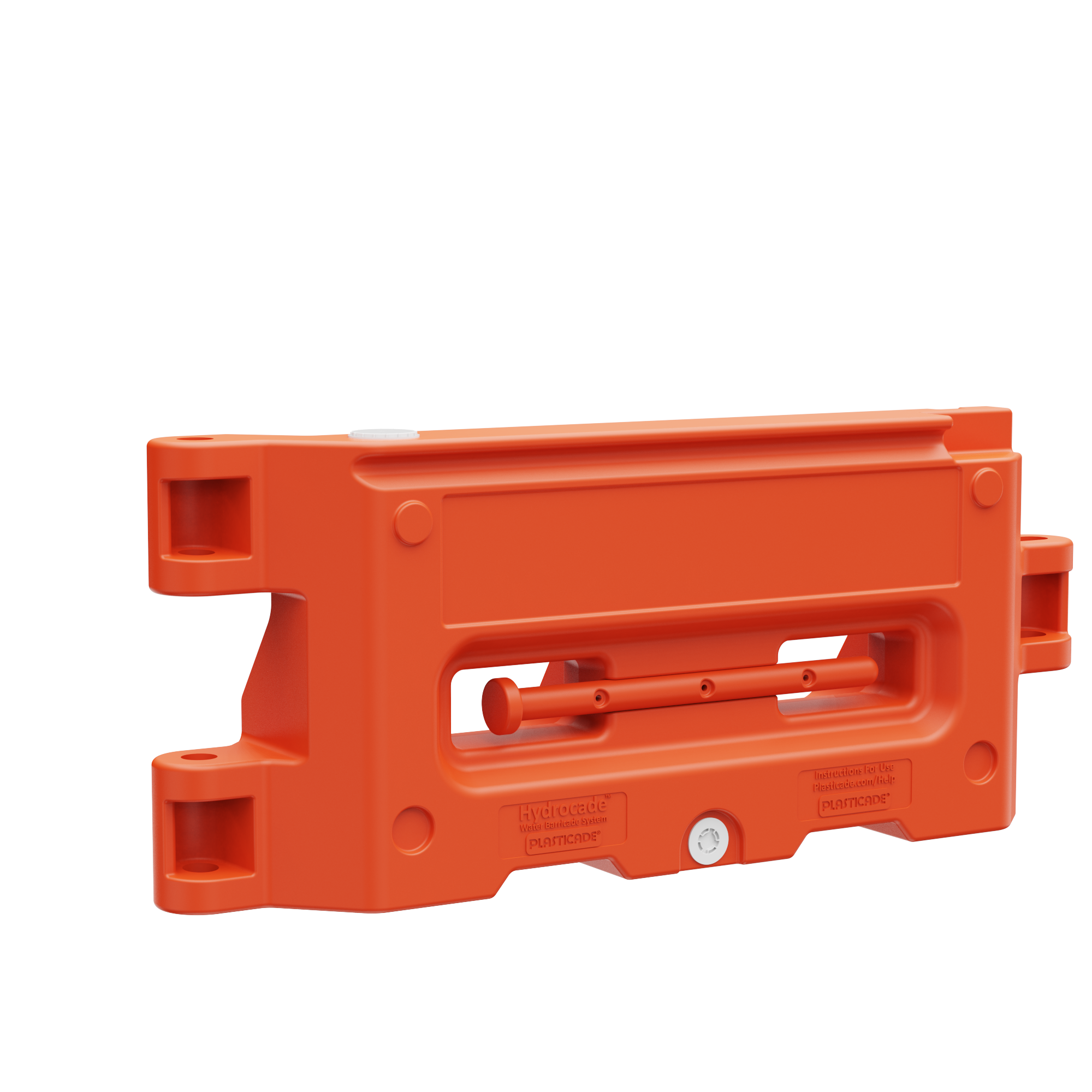

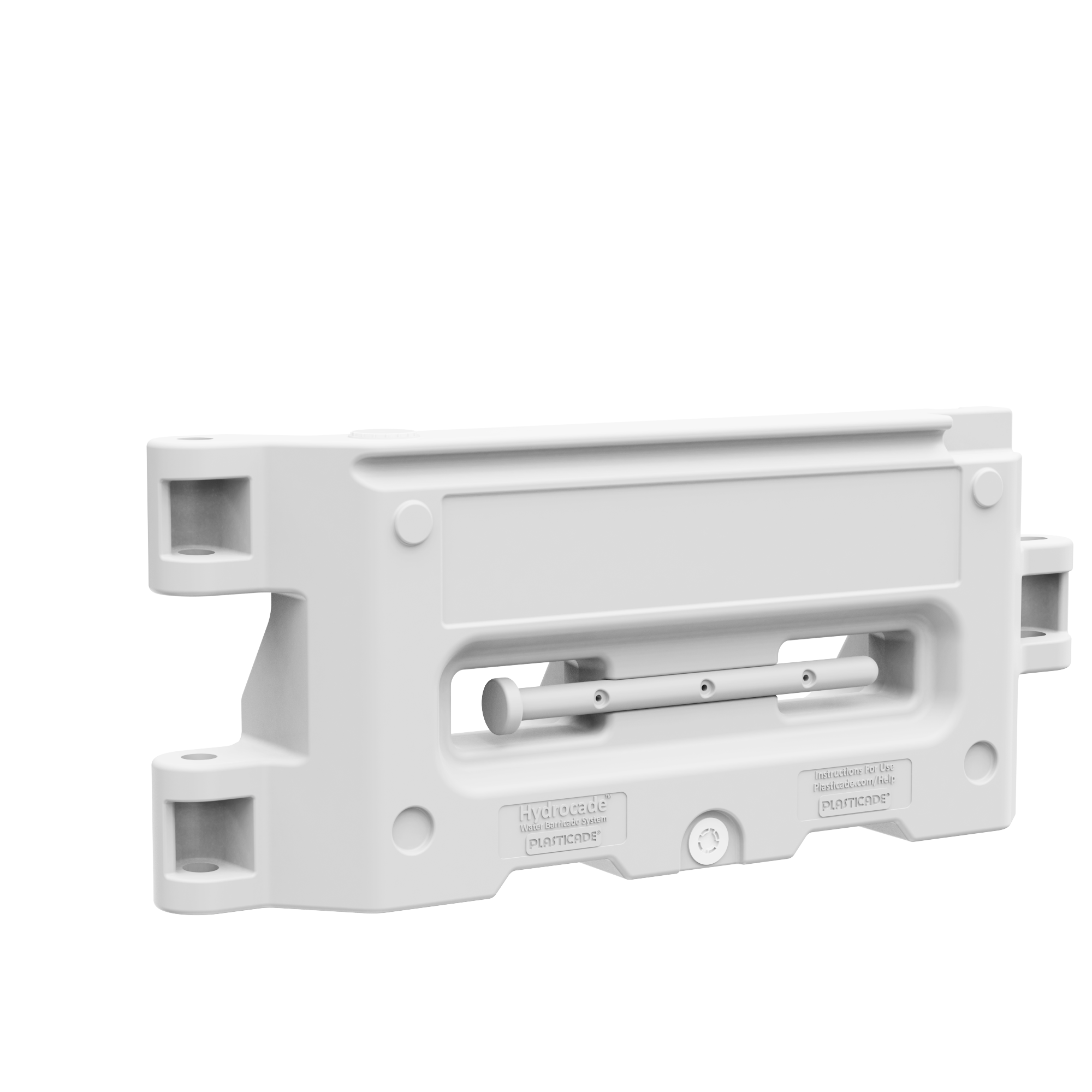

Broadfence’s Water-Filled Barrier is a portable, plastic, ballast-fillable barrier for traffic control, perimeter protection, and site separation. Our water-filled barrier gives contractors and municipalities a portable barrier that can be positioned by hand and ballasted in place. Once filled through the large threaded top fill-port with water, the barrier provides mass and clear delineation for channeling traffic, protecting work areas, and separating vehicles from pedestrian routes.

Dual bottom drain plugs make relocation straightforward as work zones move, and two molded-in pockets on top accept standard blinking lights for improved visibility during night work and low-light conditions. Barriers link together to form continuous runs for lane closures, detours, access control, and site frontage.

Each barrier measures 72 in. long by 32 in. high and weighs about 67 lbs empty, then fills with 81 gallons of water for a deployable weight of roughly 745 lbs, so crews can install it by hand with no heavy machinery. As a longitudinal channelizing device it conforms to the roadway, turning 90 degrees and adjusting to curbs up to a 6 degree incline, and connector pins snap onto the barricade for storage. The barrier is crash tested to TL-3 MASH acceptance and submitted to the FHWA, meets MUTCD standards, and is made in the U.S.A. A unique stacking design ships up to 200 units per truckload, and two forklift access points speed loading and unloading.

Broadfence supplies barriers on a sell-and-ship basis, so buyers keep a reusable traffic management asset available for every project. Suitable for road and highway work, utility and municipal projects, parking and site access control, and event vehicle separation, these barriers support safer, clearly organized work zones.

Full Specifications

Barrier Dimensions 79” L x 17.5” D x 32” H

Weight 67 Lbs. (empty)

LCD Deployed Weight 745 lbs

Pin Dimensions 33"L x 4"W (at head of pin)

Top Width 8”

Fill Cap 5” diameter

Fill Hole 3" Diameter

Drain Hole 2" Diameter

Material Polyethylene

Color Orange

What Our Clients Say

Very satisfied with the product and the staff was very helpful in choosing the correct product for my company.

– Melissa, Chattanooga, TN

All the people that we are working with really like this fencing, easy to setup and move as needed, and they really like the no sandbags!

– Tim, Butler, PA

Very pleased with the product. The panels were well packed for shipping. The panels will serve us well for a long time. We were very happy all the way through the process. Will be more than happy to recommend you to others.

– Greg, Perryton, TX

Frequently Asked Questions

What is the Water-Filled Barrier made of?

Durable plastic, designed to be filled on site with sand or water for ballast.

How much water does the barrier hold?

It fills with 81 gallons of water for a deployable weight of about 745 lbs, and weighs about 67 lbs empty.

Does it accept warning lights?

Yes – two molded-in pockets on top accept standard blinking lights.

Is it easier to relocate?

Yes – it can be drained via the dual bottom plugs before moving, then refilled once repositioned.

How is the barrier filled?

Through a large threaded top fill-port, using water as ballast once the barrier is positioned.

How is it moved between work zones?

Dual bottom drain plugs allow the barrier to be emptied before relocation, then refilled in its new position.

Can warning lights be fitted?

Yes. Two molded-in pockets on top of the barrier accept standard blinking lights.

What size is the barrier and how much does it weigh?

Each unit is 72 in. long by 32 in. high, about 67 lbs empty and roughly 745 lbs once filled with 81 gallons of water.

Is the barrier crash tested?

Yes. It is crash tested to TL-3 MASH acceptance, submitted to the FHWA, and meets MUTCD standards.

How many barriers fit on a truck?

The unique stacking design ships up to 200 units per truckload, and two forklift access points make loading and unloading fast.

Where is it made?

It is made in the U.S.A.

Where are water filled barriers typically used?

Road and highway work zones, detours, utility and municipal projects, parking and site access control, and event vehicle separation.

Are these available to purchase?

Yes. Broadfence sells and ships barriers direct across North America.
